Featured Products

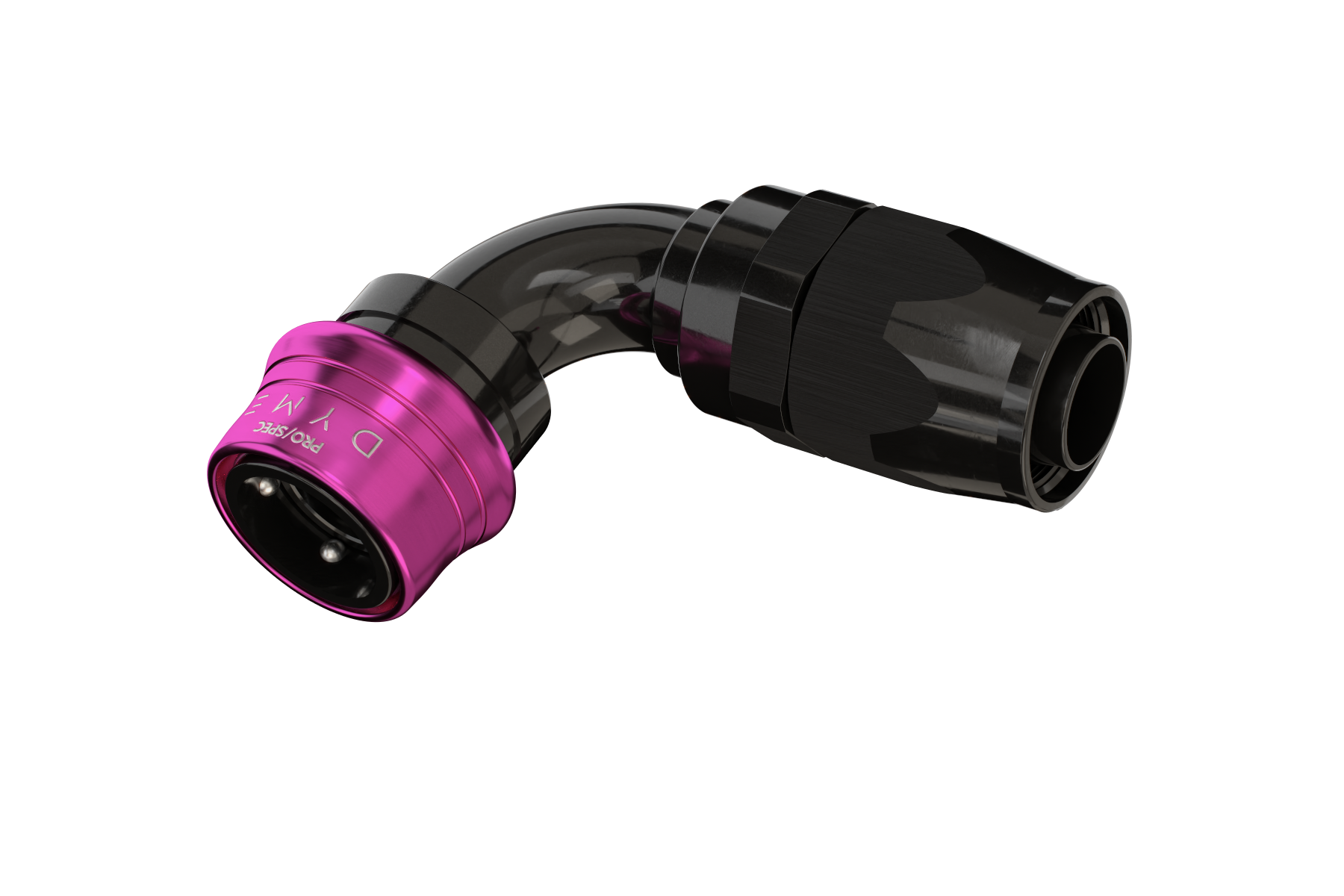

Dyme PRO/SPEC™ B-Type Reusable Swivel: Experience the ultimate flexibility and one-handed tool-free connection, with built in safety features including dual FLUOROK™ FKM O-rings sealing the barrel to the adapter, a secondary overlock channel to jam the pull ring, and a high visibility band to ensure your fitting is locked on at a glance.
🔑 KEY FEATURES
Forged 6061-T6 Aluminum Body: Black anodized for corrosion resistance and durability. Precision forged and machined, eliminating welded weak points where possible for maximum strength.
180° Swivel Adjustment: Ensures easy, stress-free hose routing in tight spaces. Allows post-crimp clocking adjustment for perfect hose alignment (no pre-clocking required).
Dual FLUOROK™ FKM Seals: Superior chemical/heat resistance (constant 205°C/401°F). Dual sealing on the fluid connection AND swivel mechanism provides extra redundancy, safety, and virtually eliminates leak paths.
Reusable Compression Design: Secure, non-permanent connection for easy assembly of components without the use of specialized equipment, allowing for re-use and servicing of hoses over time.
Service Kits Available: Keep your fittings in peak condition for years with replacement seals and component kits.
✅ COMPATIBILITY
PRO/SPEC™ B-Type works with these hoses; SUPERSTRASSE-R™ ALCOPRO™ CPE+EPDM+SS (MAX 150°C/302F). Fittings may be compatible with hoses from other brands, however Dyme cannot endorse or guarantee the performance of these combinations.
FLUOROK™ FKM Seal Compatibility; Common fuels (gasoline, ethanol), motor oil, gear oil, transmission oil, coolant, air, (constant 205°C/401°F).
⚠️ NOT Compatible With: Methanol & Nitromethane fuels.
For Methanol/Nitromethane:* Use PRO/SPEC HM-Type (METHODEX™ seals) or HX-Type (DYMAX-F™ seals), or FATBOY H-TYPE AN fittings.
Size-Specific Cross-Compatibility:**
PS06/AN06:** Fits SAE J2044 3/8" barbs.
PS05/AN05:** Fits 5/16" SAE J2044 barbs.
PS sizing is equivalent to AN for selection and flow.
⚠️ IMPORTANT SIZING NOTE:
All PRO/SPEC™ B-Type fittings require a matching PS-size adapter for your specific port. Ensure you select the correct adapter (e.g., a PS08 fitting requires a PS08 adapter, equivalent to AN8). Most options of interfacing thread type and standard are available, along with welding and fabrication options.
PRICE IS PER METER.

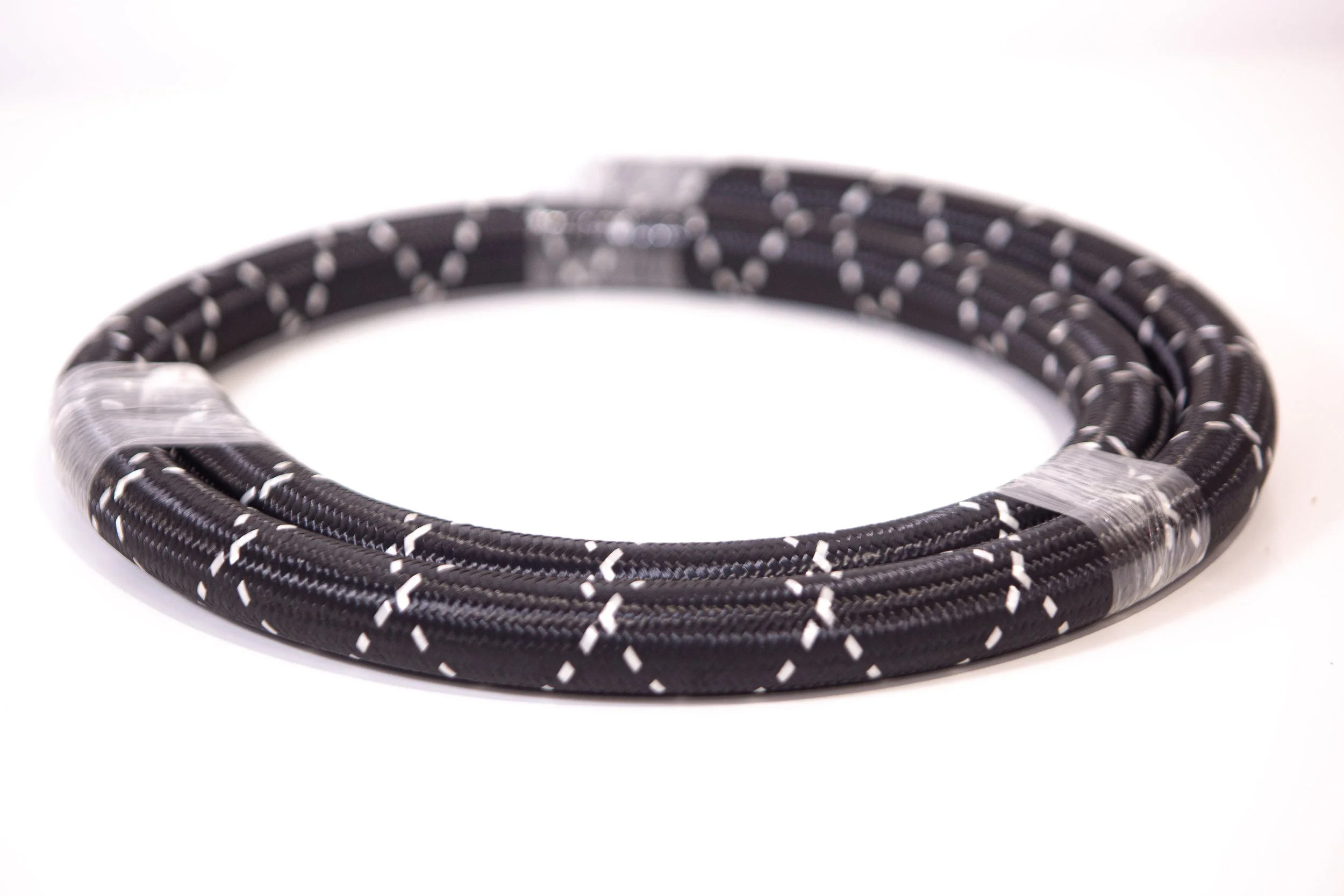

DYME SUPERSTRASSE-R TYPE CPE LINED RUBBER HOSE FOR DYME REUSABLE FITTINGS, WITH 304 STAINLESS STEEL REINFORCING BRAID AND POLYETHELENE TOP BRAID, SPORTING A BURST PRESSURE OF OVER 2000 PSI ON SMALL BORE HOSES, IT IS A STURDY AND COST EFFECTIVE SPORTS HOSE FOR A WIDE RANGE OF APPLICATIONS.
REUSABLE, COMPRESSION SEAL VERSION SUPERSTRASSE IS COMPATIBLE WITH ALL PRO/SPEC & FATBOY B-TYPE FITTINGS, THE FIT IS SLIGHTLY TIGHTER AND CAN REQUIRE A SMALL AMOUT OF A SUITABLE LUBRICANT TO SEATH THE FITTING INTO THE HOSE. THESE HOSES RETAIN EXCELLENT FLEXIBILITY AND SUITABLE UP TO 150C/302F IN CONTINUOUS OPERATION TEMPERATURE.
COMAPTIBLE WITH A WIDE RANGE OF FLUIDS, OILS AND FUELS, CHECK DYME’S TECHNICAL PAGE FOR ALL MATERIAL COMPATIBILITY BEFORE YOU BUY. COMPATIBLE WITH DYME REUSABLE HOSE FITTINGS, MAY BE COMPATIBLE WITH OTHER BRANDS, NOT RECOMMENDED, USE CAUTION WHEN MIXING MATERIALS.
AS ALCOHOL FUELS EVENTUALLY WILL PERMEATE E85 RATED MATERIALS, IT IS ADVISED TO PERFORM PREVENTATIVE MAINTENANCE BY RENEWING THE HOSE MATERIAL EVERY 5 YEARS FOR A FUEL HOSE, AND AS NEEDED FOR SYSTEMS THAT MAY HAVE TRACE EXPOSURE TO ALCOHOL SUCH AS OIL SYSTEMS.

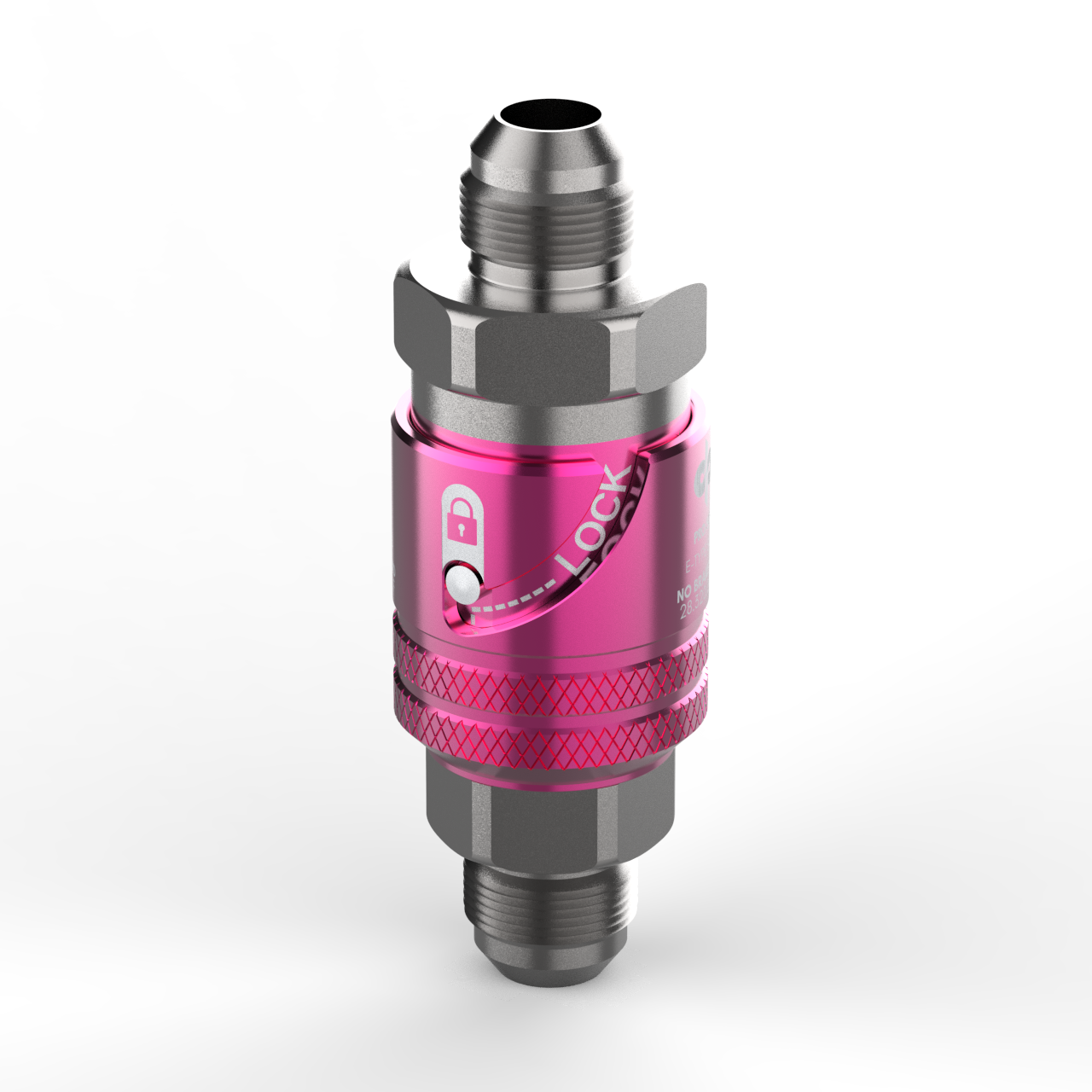

E-TYPE PRO/SPEC DUAL AN ENDED DRY BREAK COUPLER FOR FLUIDS, ENSURE CORRECT PART IS SELECTED FOR FLUID BEING USED.

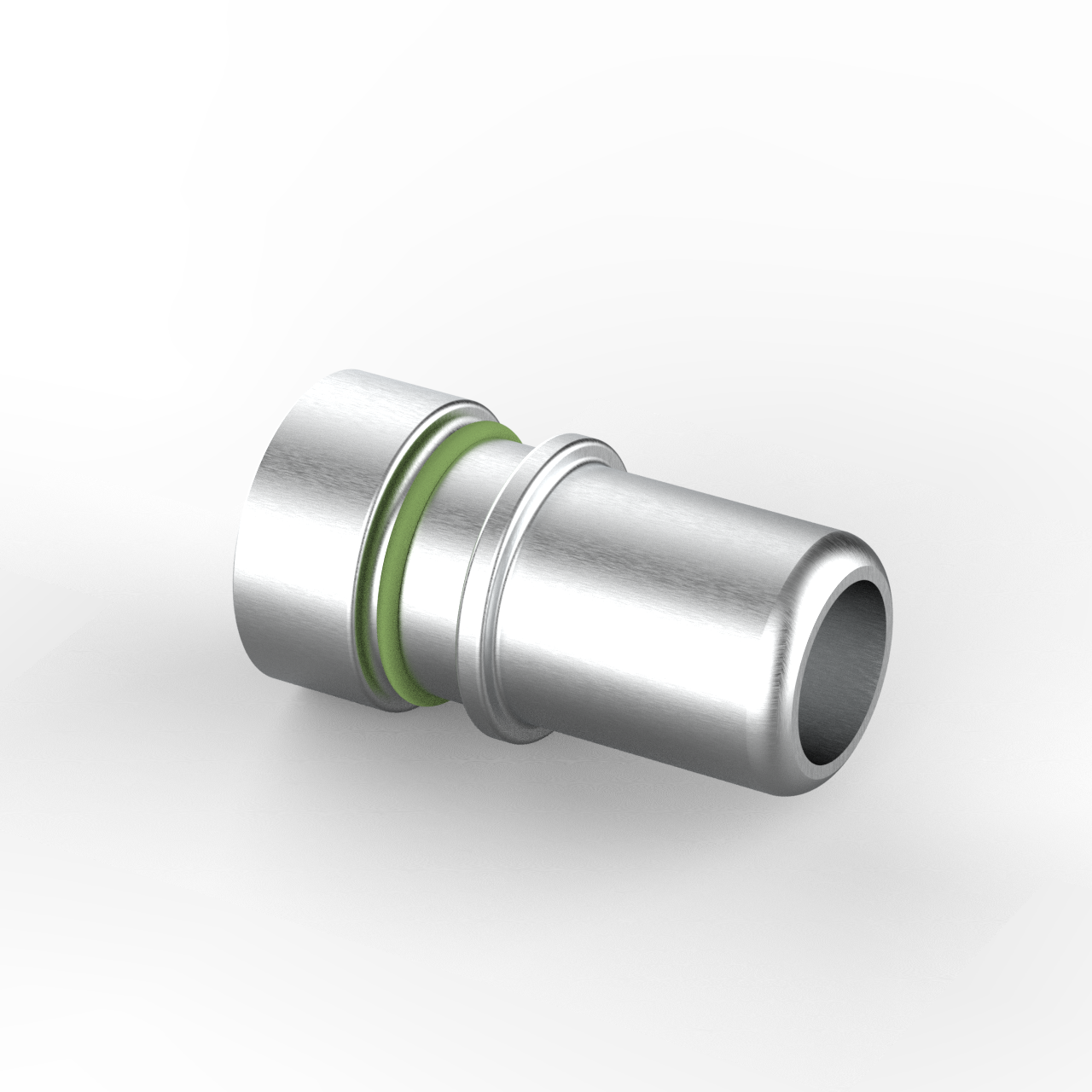

PRO/SPEC weld-on adaptors for fabricators to add quick connect fittings where needed. 6061-T6 billet aluminium, non-anodized body. Take care when welding to avoid warping/deforming the adaptor body and compromising the sealing surface. Green locking indicator ring is to be installed onto the fitting after welding.
